Ductility EMI Shielding Rolled Pure RA Copper Foil

Brand Name : OEM

Place of Origin : China

Supply Ability : 550T Per Month

Packaging Details : Exporting Wooden Case

MOQ : 50kg

Price : Negotiable

Certification : ISO / SGS / RoHS

Delivery Time : 10 - 15 Days

Payment Terms : L/C, T/T

Application : EMI shielding

Width : 4mm-200mm, 3-500mm

Material : Copper C11000

Grade : RA copper

Cu (Min) : 99.95%

Alloy Or Not : Non-alloy

Processing Service : Welding, Decoiling, Cutting, adhesive Backing

Thickness : Customized

Length : Clients ' Reuqests

Surface : Matte/polished

Contact Now

Ductility EMI Shielding Rolled Pure RA Copper Foil

Products Description

Made of pure copper, copper grade T2(China), C1100(Japan), C11000(USA), E-CU58(Germany), CU-ETP(EU, ISO). Copper purity more than 99.95%. This is RA copper foil, one side is polished side and the other side is matte. We also have ED copper foil, ED copper foil can choose one side polished and double side polished. The ED copper can have a higher purity. welcome to contact us if you need it.

Width, length, thickness all can be customized. we can also provide DIE cutting service.

We are also copper foil processing factory, Backing adhesive glue on the copper foil, laminate the copper foil with polymer films like PET, PI, PE and other films. DIE cut into customized shapes. you can send us your drawings and we can cut it into your shapes.

Application

Rolled Copper Foil has extraordinary strength, bendability, ductility and lustrous surface, plus its excellent mechanical capacity, makes it irreplaceable as a raw material. Especially when used for transformer, Copper Flexible Connector, CCL, FCCL, PCB, Geothermal Film, Construction, Decoration etc.

Specifications

Thickness	Tensile strength	Elongation	Temper	IACS
μm	kgf/mm2	%	HV	%
18±5	≥8	≥4	55-65	≥98.3


22±5	≥10	≥4	55-65	≥98.3


25±5	≥10	≥5	55-65	≥98.3


35±5	≥15	≥8	55-65	≥98.3


50±5	≥15	≥10	55-65	≥98.3


100±5	≥20	≥20	55-65	≥98.3

Ductility EMI Shielding Rolled Pure RA Copper Foil

Product Tags:

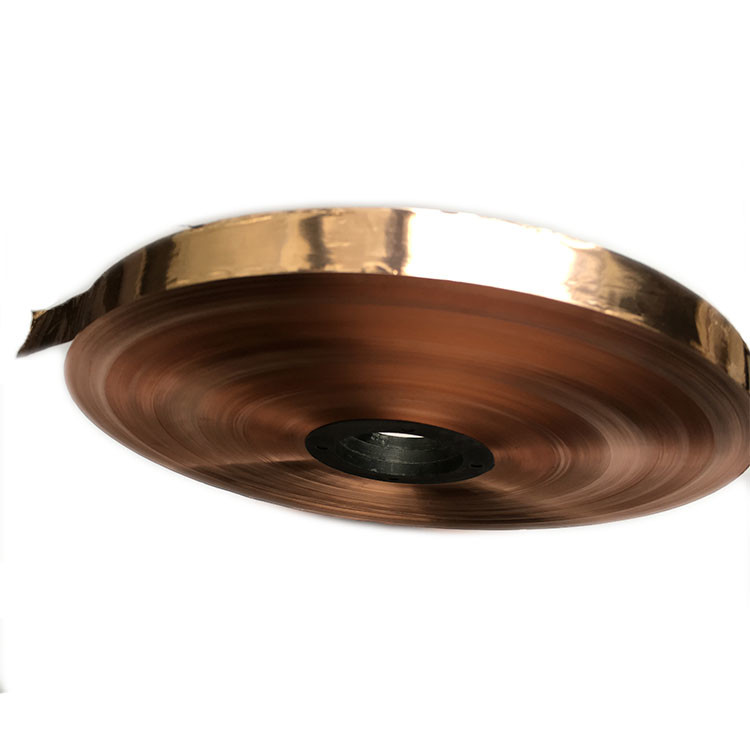

Ductility EMI Shielding Rolled Pure RA Copper Foil Images
